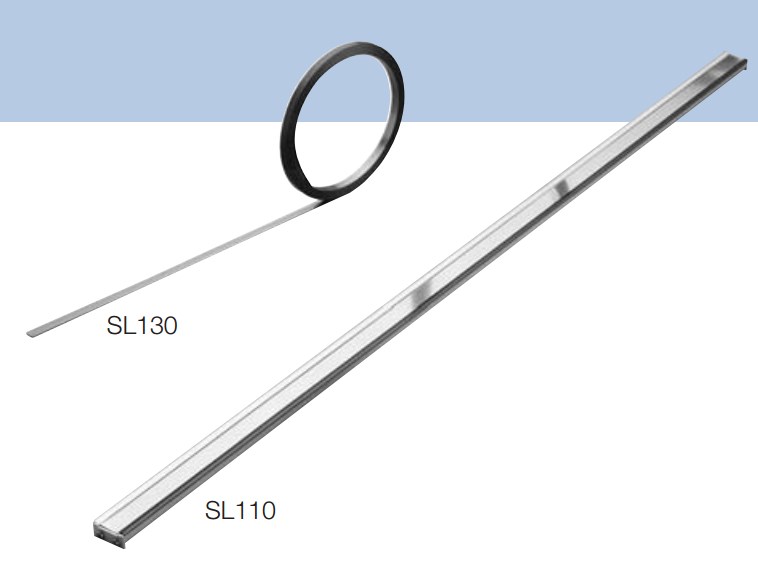

索尼Magnescale磁尺SL110-50
简单介绍
安装容易，长可达30m，与读头之间不接触
产品特性：
1.磁感应侦测方式；
2.环境适应性佳：耐油，灰尘，冲击与振动能力强（PL20C等同IP65）
3.解板度：10μm；
4.供应长度可达30m(SL130)
5.磁性尺的构造小型，简单，容易按装。
6.适合安装在木材，石材加工机与金属加工机等大型机器上。
7.主要用途：木材，石材加工机。
8.应答速度300m/min
|
SL110/130 Specifications |
|||
|
Model |
SL110 |
SL130 |
|
|
-20 to -200 |
-20 to -700 |
-800 to -3000 |
|
|
Effective length L mm (inch) |
200/300/400/500/600/700/800/1000/1200/
1500/1600/1700/1800/2000 (7.8/11.8/15.7/19.6/23.6/27.5/31.4/39.3/47.2/ 59.0/62.9/66.9/70.8/78.7) |
200/300/400/500/600/700/800/1000/1200/
1500/1600/1700/1800/2000/2500/3000/
4000/5000/6000/7000 (7.8/11.8/15.7/19.6/23.6/27.5/31.4/39.3/ 47.2/59.0/62.9/66.9/70.8/78.7/98.4/118.1/
157.4/196.8/236.2/275.5) |
8000/9000/10000/20000/30000 (314.9/354.3/393.7/787.4/1181.1) |
|
Overall length |
L+103 mm/ 4.1" |
L+100 mm/ 3.9" |
|
|
Accuracy
(at 20 ˚C /68 ˚F) |
± (25 + 5L/ 1000) mm |
± (25 + 5L/ 1000 + 10N) mm N=1when L=8000
/9000/10000 , N=2 when L=20000 , N=3 when L=30000 |
|
|
Resolution |
10 mm |
||
|
Max. response speed |
300 m/ min |
||
|
Expansion coefficient |
(11.1 ± 1) x 10-6/ ˚C |
(10.4 ± 1) x 10-6/ ˚C |
|
|
Operating temperature |
-5 ˚C to 45 ˚C / 23 ˚F to 113 ˚F |
||
|
Storage temperature |
-10 ˚C to 50 ˚C / 14 ˚F to 122 ˚F |
||
|
Compatible read head |
PL20C |
||
